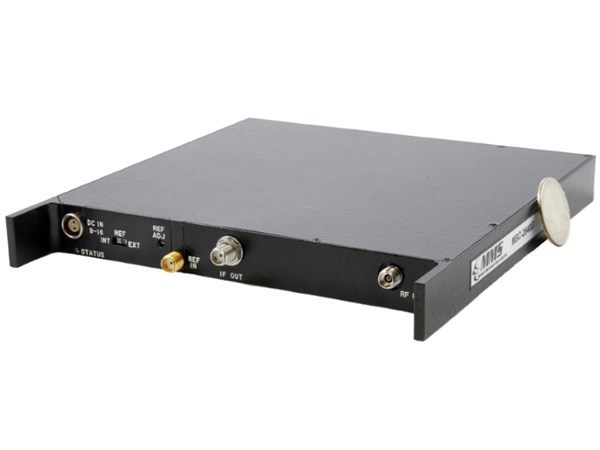

MBC-2640G

RF Block Converter

  • 26.5 - 40GHz RF Input Frequency Range
  • Dedicated Microwave Down-converter
  • 3.2 – 16.7GHz IF Output Frequency Range
  • External or Internal Phase Locked
  • Low 12dB Noise Figure
  • -5dBm IIP3
  • Nominal 5dB Gain to IF Output
  • Low Phase Noise (<1.0° typical jitter)
  • Plug-and-play (no control required)
  • Miniature Package
  • Low Power Dissipation < 8W
