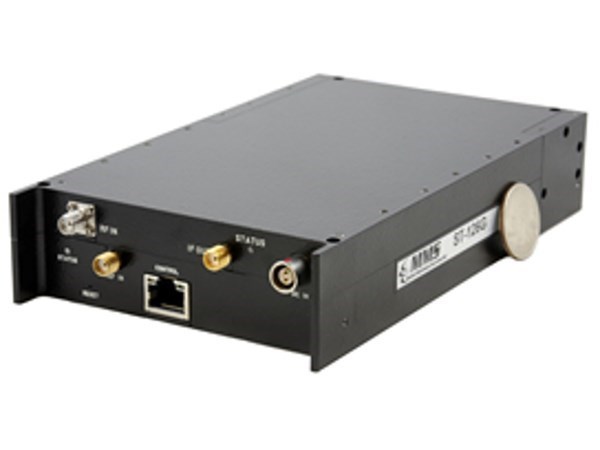

ST-118/126G and ST-118-D/126G-D

1GHz-18/26GHz Miniature Wideband Microwave Tuners with Spectral Display

Single and Dual Channel Phase Coherent versions available

  • 800MHz –18GHz tuning range (26.5GHz option)
  • Low Power:  <15W
  • Fixed and tracking preselectors
  • 50GHz/s Scan speed (25kHz resolution)
  • Multiple IF / BW options
    • 140 MHz IF OUT, 20 – 80 MHz BW’s (-140)
    • 70 MHz IF OUT, 10 – 60 MHz BW’s  (std)
  • 0.5° rms  phase jitter, typ (10kHz-10MHz)
  • Low 14 dB noise figure
  • 60 dB Gain
  • Automatic & Manual Gain Control
  • High 0 dBm IIP3 (typ)
  • Low Power Digital Signal Processor
  • 40 MHz digitized bandwidth

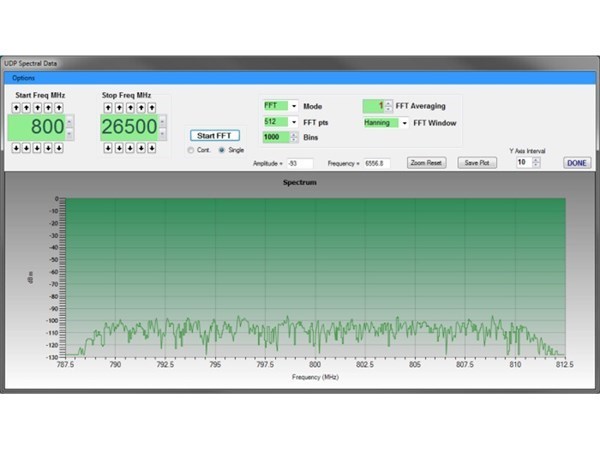

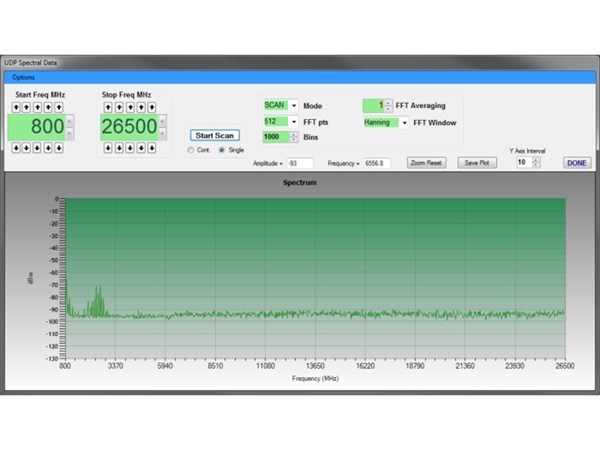

  • FFT, SCAN, Outputs
  • 10/100BASE-T Ethernet
  • Software GUI’s and support utilities
