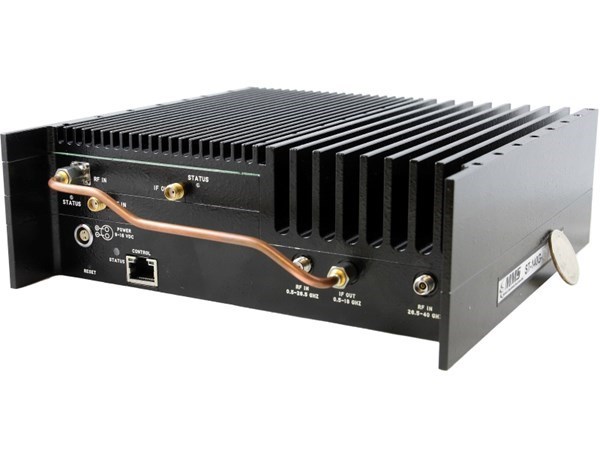

ST-140G

1-40GHz Wideband Microwave Tuner with Spectral Display

7.29" x 3.95" x 2.10"
  • 800MHz–40GHz tuning range
  • Low Power: <30W
  • Fixed and tracking preselectors
  • Fast 500usec tune time
  • Low Phase Noise (0.6° typical jitter)
  • Low 16 dB noise figure
  • 60 dB Gain
  • Automatic & Manual Gain Control
  • High 0dBm IIP3
  • Low Power Spectral Signal Processor
  • 32 MHz digitized bandwidth
  • FFT, SCAN, Outputs
  • 10/100BASE-T Ethernet
