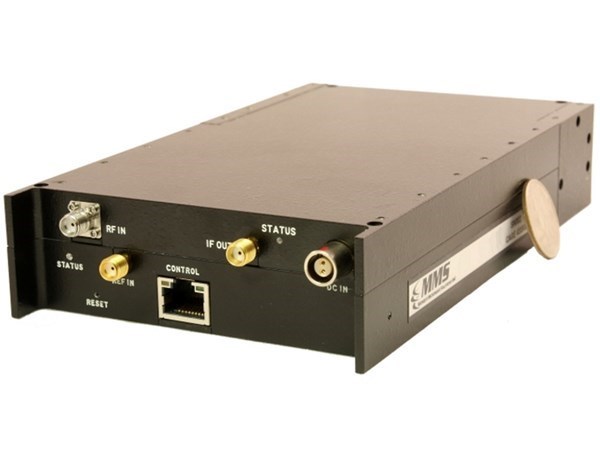

WBT-126G

800MHz–26.5GHz Network Controlled Microwave Tuner

4.10" x 6.90" x 1.34"
  • 800MHz–26.5GHz tuning
  • Low Power: <18W
  • Fixed and tracking preselectors
  • Fast 500usec tune time
  • Wideband IF Bandwidth
    • 500 MHz BW, centered at 1000MHz
  • -100 dBc/Hz phase noise, 100kHz offset
  • 0.5° rms phase jitter typical (10kHz-10MHz)
  • Low 14 dB noise figure
  • 60 dB Gain
  • Manual Gain Control (AGC optional)
  • High 0 dBm IIP3
  • Compact rugged package
  • Network controlled (10/100 Mb Ethernet)
